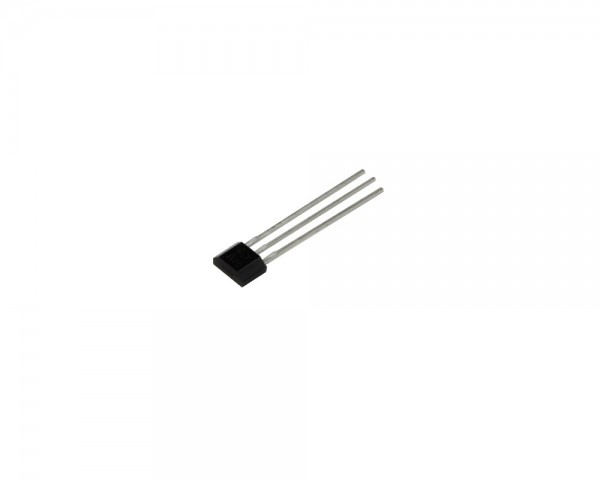

Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Preview: Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C Preview: Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C Preview: Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C
Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Quantity Unit price
until 9 € 0.92 *
from 10 € 0.76 *
from 20 € 0.64 *
from 50 € 0.54 *
from 100 € 0.44 *
from 200 € 0.37 *
from 500 € 0.31 *
from 1000 € 0.24 *
from 3000 € 0.21 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 473 pieces (3-4 weeks if more)

Package:

Description Technical Properties Data Sheets Product Safety Information
Description
Applications VCD/DVD loader, CD/DVD-Rom Cover detector Speed Measurement Home... more
Close menu
Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Applications

  • VCD/DVD loader, CD/DVD-Rom
  • Cover detector
  • Speed Measurement
  • Home applications
  • Home safety etc.

Features

  • 2.5V to 18V operation voltage
  • Built-in dynamic offset cancellation
  • Small size
  • High balance and low thermal drift of
  • magnetic sensing
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +125°C
Max. Supply current/voltage: 25 mA
Operation Point: -12.0 mT ~ -9.0 mT
Release Point: -11.0mT ~ -5.5mT
Hysteresis: -3.5 mT ~ -1.0 mT
Power Supply: 2.5V ~ 18V DC

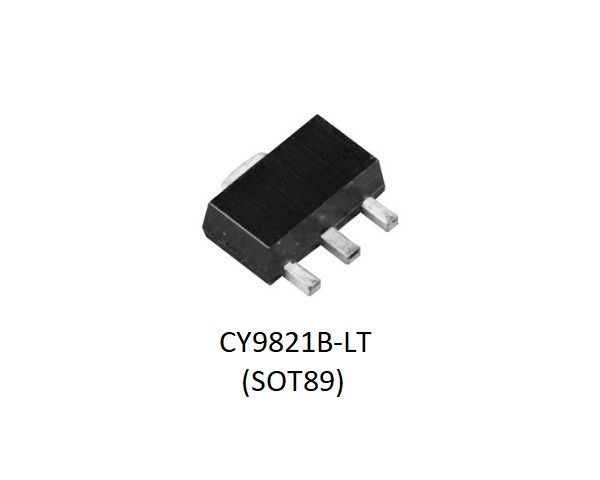

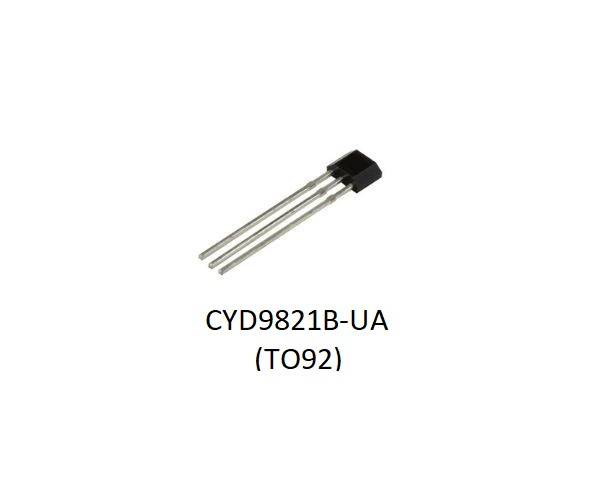

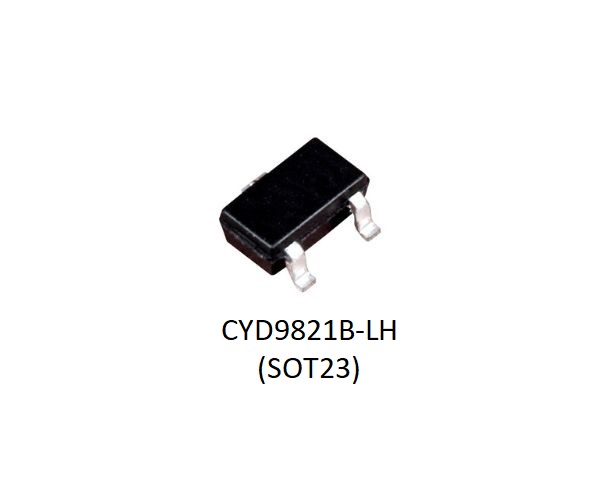

Package/Size: SOT23/2.9x1.8x1.1mm, SOT89/4.5x2.45x1.5mm, TO92/4.0x3.1x1.5mm
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
